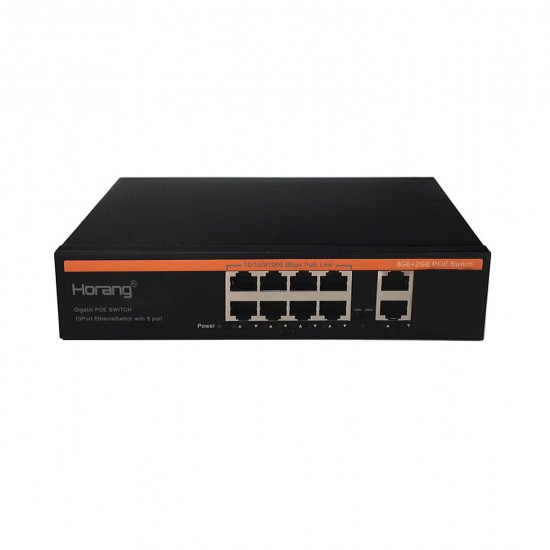

Horang 8-port PoE switch with 2 Gigabit uplink ports Network switch ideal for NVR and PoE IP cameras

Horang 1000 Mbit/s, 8 PoE ports + 2 1000 Mbit/s uplink ports, POE switch

    POE (PowerOverEthernet) means that it provides electrical transmission functions without any changes to the CAT5 or CAT6 network cabling infrastructure while transmitting signals for IP-based terminals. The POE power supply provides power via the Ethernet interface connected to the cable. Only the network cable connected to the communication terminal is used to ensure the power supply. This POE series offers a voltage of 48 V and the transmission distance of the intelligent AI selection power supply is up to 100/250 m. By using a high-performance Ethernet switching main chip and a PSE power supply chip, combined with fast Ethernet data transmission and power supply functionality, as well as intelligent Ethernet POE power supply with intelligent AI management functionality, the device never burns out; with its high backplane and capacity design, it has extremely fast data processing capabilities and smooth transmission of high-resolution network data. The Seiko steel alloy housing is electrostatically painted, promotes dual-flow heat dissipation, ensures stable performance and trouble-free operation ≥ 30,000 hours; excellent port performance, easy installation. Supports ports that are fully equipped with IEEE802 3af/at standard power supply; 100M POE power supply: 12+/36- (synchronous data transmission); WEB and other network management system platforms, easy-to-use configuration switches and POE-related parameter functions provide a secure transmission guarantee for video surveillance and network communication.

Description

* Supports the IEEE802.3af/at standard.

* Transmits Ethernet data via a network cable and ensures power supply.

* Automatic detection and identification of PD power receiving devices that comply with the IEEE802.3af/IEEE802.3at standard.

* Supports port power supply priority to ensure continuous power supply to network gateways.

* Short-circuit protection. If the current is too high or the PD device fails, the power supply is interrupted to protect the PD-powered device.

* Energy-saving and environmental protection functions, automatic standby mode, cable length adjustment, and other functions. Automatic standby mode for energy saving when the port is not connected. With a cable length of less than 10 meters, the power transmission rate is guaranteed.

* Supports the SNMP protocol, web management, and flexible configuration of switch-related parameter functions.

* Complete product range: choice of 1–24 POE power supply ports, 1–2 electrical uplink ports, and cascade applications for optical SFP ports;

Parameters

* Product name: 10-port POE switch

* UPLINK: 1000 Mbit/s: 2 x 10/100/1000 Mbit/s RJ45 port

* POE port: 1–8

* POE range: DIP switch setting: 1. Reset; 2. Transmission: 100 m or 250 m

* Power supply pin: 1 2 +/3 6-

* Data transmission: 1 2 +/3 6-

* Power per port: 15.4 W (16 W) / 25.5 W (30 W)

* Total power: 120 W

* Voltage range: AC 220 V / DC 52 V

* Operating temperature: -20 °C to 65 °C

* Size: 202 x 140 x 45 mm

Contents:

- 1* PoE switch

- 1* power cable (EU)

- 1* introduction
