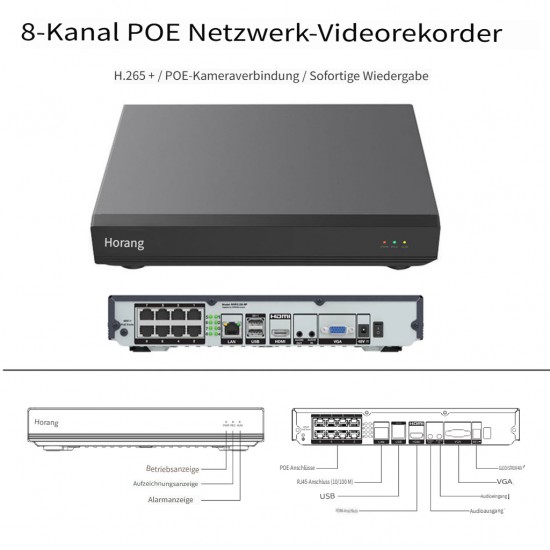

The HORANG SH-5004-B4D4 PoE Kit is a complete set for reliable security of small business premises, offices, or warehouses. It includes a powerful SH-N108K-AP recording device for up to 8 PoE-powered IP cameras, as well as four 5MPx turret cameras with dual infrared and LED illumination for high-quality recordings – even at night. Thanks to advanced H.265+ compression, intelligent person and vehicle detection, and the easy-to-use "Vision by Horang" mobile app, you get uncompromising surveillance efficiency.

Mounting Options

Dimensions: 365 × 365 × 335 mm

Gross Weight: 8.8 kg

Package Contents:

Ethernet Cable: 5 m × 1, 18 m × 8

HDMI Cable: 1.5 m × 1

Power Adapter: DC 48V/2A × 1 (for NVR)

Mouse: 1 (for NVR)

Quick Start Guide: 1

Positioning Stickers: 8 (for cameras)

Waterproof Kits: 8 (for cameras)

Mounting Screws: 1 set (for HDD) + 4 sets (for cameras)

IP Rating: For Indoor Use

App: AI Home Camera

Protocols: TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP, RTSP, P2P

ONVIF: Profile S

Languages: English / German / French / Spanish / Arabic / Russian / Vietnamese / Italian / Japanese / Turkish

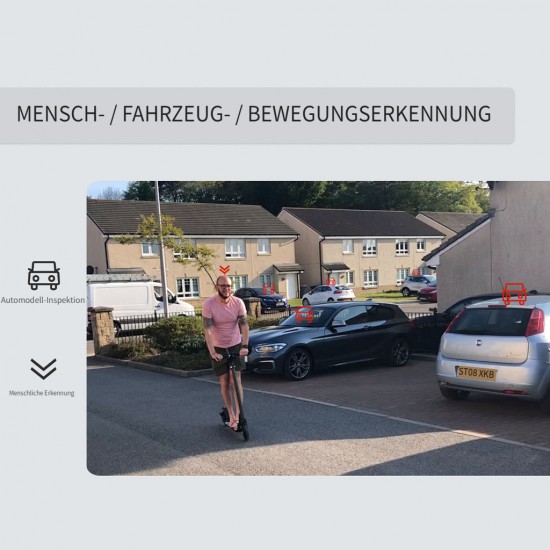

Intelligent Alarm (IVS): Person & Vehicle Detection / Motion Detection / Area Detection / Line Monitoring

Certifications: CE, RoHS, REACH

Network: 1x 10/100Mbps (RJ45, PoE)

Material: PC + Metal

Night Vision: Dual-Light Vision

Microphone: Integrated

Focal Length: 2.8 mm / 4 mm (optional)

Aperture: F1.6

Resolution: 5 Megapixels

Operating Humidity: <90% (non-condensing)

Power Consumption: Max. 12W

Power Supply: PoE 48V/0.35A or DC 12V/1A

Kit Type: SH-5004-B4D4 (1x N108K-AP + 4x SH-I55D8H + 4 x SH-I45D2H

Technical Specifications

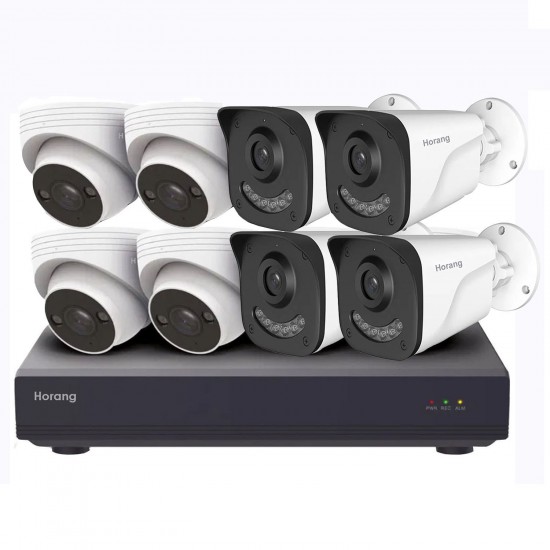

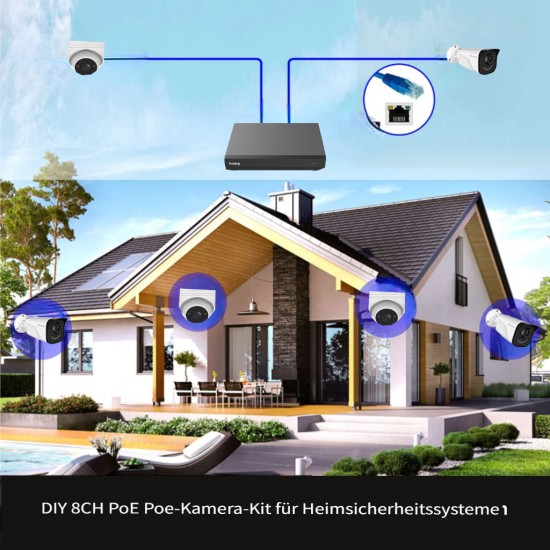

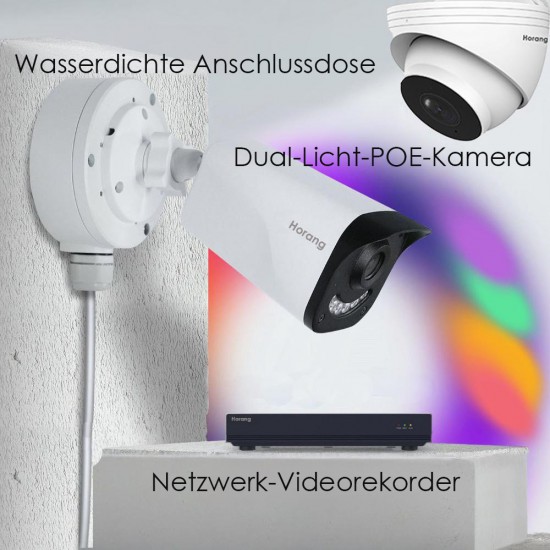

Complete video surveillance kit: Recorder + 4 x 5MP turret IP cameras + 4 x 5MP bullet IP cameras with simple PoE connection

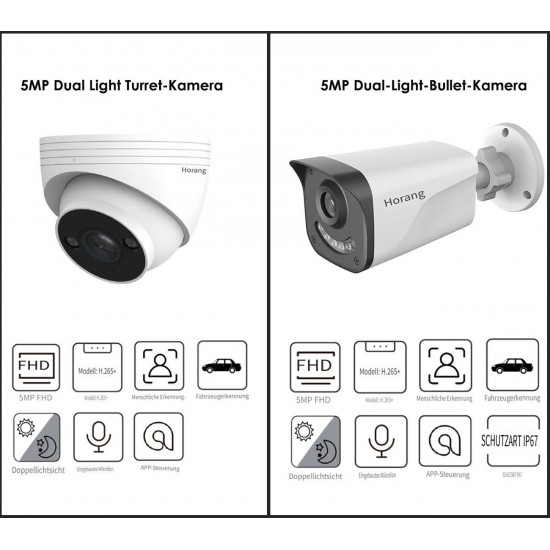

Cameras with CMOS sensors deliver detailed images in 2880 × 1620 pixels with a 101° viewing angle

Dual infrared and white LED illumination for color recordings even in the dark

Advanced H.265+ compression reduces storage requirements by up to 75%

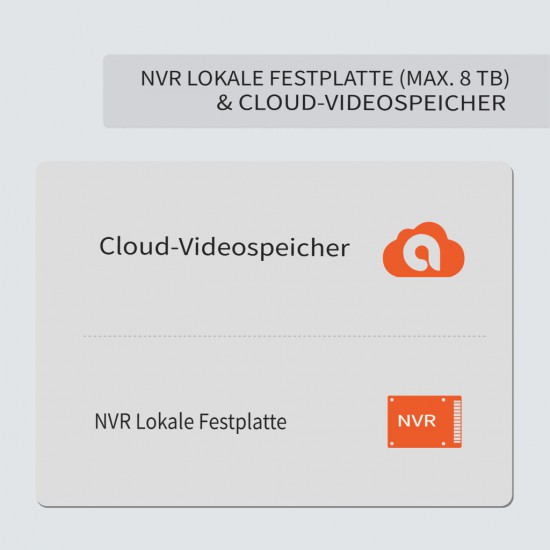

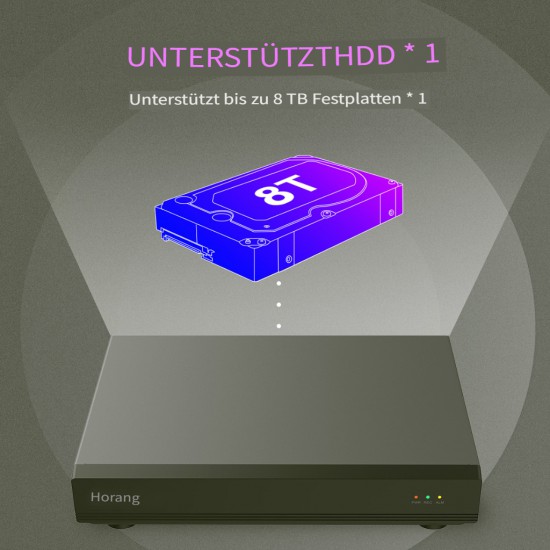

Support for hard drives up to 8 TB for long-term recording storage

Built-in microphone, person and vehicle detection, ONVIF support (Profile S)

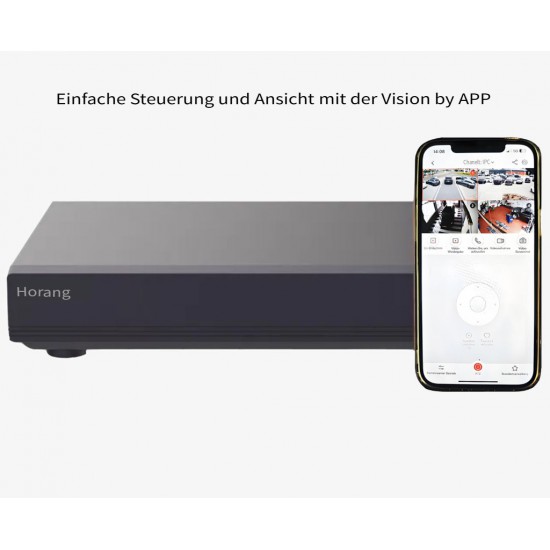

Mobile app "Vision by AI home camera" enables remote access and system control

Description

Ceiling, pendant, or wall mounting
